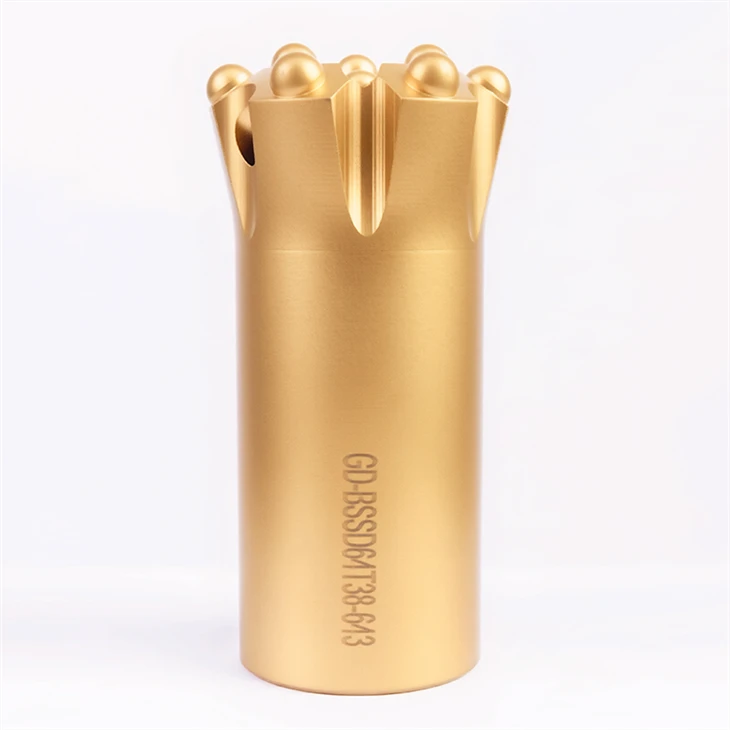

Gombík bit T38
Priemer bitov: 64 mm, 70 mm, 76 mm, 89 mm, 102 mm
Karbid: karbid volfrámu, balistická alebo sférická
Dizajn bitovej tváre: plochá tvár, kvapka stredná tvár
Sukňa: Štandardná sukňa
Aplikácia: Vŕtanie lavičiek, výrobné vŕtanie, podzemná ťažba, tunelové vŕtanie
MOQ: 100 ks
Farba: zlato \/ prispôsobenie
Krajina pôvodu: Čína
Technický parameter
|
Parameter |
Špecifikácia |
|
Bitový typ |
Štandardný bit horného kladiva |
|
Typ vlákna |
T38 |
|
Bitka |
45crnimovová zliatina oceľ |
|
Gombody |
YK05 \/ Element Six |
|
Tvrdosť |
HRC 43-48 |
|
Vloženie |
Nátlak |
|
Obrábanie |
CNC vysoké presné obrábanie |
|
Technológia |
Povlak proti hrdzi; tepelné spracovanie |
|
Gombík |
Sférický \/ balistický |
|
Dizajn tváre gombíka |
F: Plochá tvár. Pre tvrdú, drsnú skalu |
|
D: Drop Center \/ konkávna tvár. Vylepšite rovnosť otvorov v zlomenej skale |
|
|
C: Typ C tvár |
Usmernenie k kódu produktu
Príklad: BSCS (B) 64T 38-633
BS: Štandardné sukňové tlačidlo Bit
F: plochá tvár; D: Drop Center Face; C: Dizajn typu C Dizajn
S: Sférické zuby karbidu volfrámu; B: Ballistické zuby karbidu volfrámu
64: Bit priemer
T38: vlákno T38
6: Čísla tlačidla rozchodu
3: Čísla predných tlačidiel
3: Čísla splachovania tváre
Technický parameter
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
Bscs (b) 64T 38-633 | 64 | 2 1/2 | 3x 11 | 6 x 12 | 3 | 0 | 35 | 1.6 |
|
|
Bscs (b) 70T 38-633 | 70 | 2 3/4 | 3x 12 | 6 x 13 | 3 | 0 | 35 | 1.8 |
|
|
BSFS (B) 64T 38-852 | 64 | 2 1/2 | 5 x 10 | 8 x 10 | 2 | 1 | 35 | 1.6 |
| BSFS (B) 76T 38-852 | 76 | 3 | 5 x 11 | 8 x 13 | 2 | 1 | 35 | 2.4 | |
| BSFS (B) 76T 38-842 | 76 | 3 | 4 x 12 | 8 x 12 | 2 | 1 | 35 | 2.4 | |
| BSFS (B) 89T 38-852 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 2 | 1 | 35 | 3.4 | |
| BSFS (B) 102T 38-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 4.5 | |
|
|
BSFS (B) 89T 38-862 | 89 | 3 1/2 | 6 x 12 | 8 x 13 | 2 | 1 | 35 | 3.4 |
| BSFS (B) 102T 38-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 4.5 | |
|
|
BSFS (B) 76T 38-953 | 76 | 3 | 5 x 10 | 9x 10 | 3 | 0 | 35 | 2.4 |
| BSFS89 (b) t 38-963 | 89 | 3 1/2 | 6 x 12 | 9 x 12 | 3 | 0 | 35 | 3.4 | |
| BSFS102 (b) t 38-963 | 89 | 3 1/2 | 6 x 13 | 9 x 13 | 3 | 0 | 35 | 4.5 | |
|
|
BSDS (B) 70T 38-854 | 70 | 2 3/4 | 5 x 10 | 8 x 11 | 4 | 0 | 35 | 1.8 |
| BSDS (B) 76T 38-854 | 76 | 3 | 5 x 11 | 8 x 12 | 4 | 0 | 35 | 2.4 | |
| BSDS (B) 89T 38-854 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 4 | 0 | 35 | 3.4 | |
| BSDS (B) 102T 38-864 | 89 | 3 1/2 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 4.5 | |
Služba
1. Prispôsobenie. Gdrills poskytujú prispôsobené služby, zahŕňajú farbu, balenie, bitový dizajn.
2. Technická konzultácia. Technické konzultácie pokrývajú predpredaj, predaj a po predaji
3. Včasná odpoveď. Bez ohľadu na to, že máte problém s výberom bitky alebo s citáciou, GDRILLS je vždy pripravený vám slúžiť.
4. Flexibilné možnosti prepravy. Doprava vzduchom, vlakom alebo morom, bez ohľadu na to, akým spôsobom, gdrills sa korduje so zákazníkmi najzaujímavejším spôsobom.
5. Flexibilná platba. Podporujeme West Union, TT, L\/C, Alipay, WeChat Pay.
Populárne Tagy: Tlačidlo Bit T38, Čína Bit Bit T38 Výrobcovia, dodávatelia, továreň, Dodanie gombíkových bitov, Distribúcia bitov gombíkov, gombíky bity pre stavebný priemysel, gombíky BITS pre podnikateľský priemysel, gombíky bity pre výrobný priemysel, Testovanie bitov gombíkov
Špecifikácie
Tlačidlo T38 Bit
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
Bscs (b) 64T 38-633 | 64 | 2 1/2 | 3x 11 | 6 x 12 | 3 | 0 | 35 | 1.6 |
|
|
Bscs (b) 70T 38-633 | 70 | 2 3/4 | 3x 12 | 6 x 13 | 3 | 0 | 35 | 1.8 |
|
|
BSFS (B) 64T 38-852 | 64 | 2 1/2 | 5 x 10 | 8 x 10 | 2 | 1 | 35 | 1.6 |
| BSFS (B) 76T 38-852 | 76 | 3 | 5 x 11 | 8 x 13 | 2 | 1 | 35 | 2.4 | |
| BSFS (B) 76T 38-842 | 76 | 3 | 4 x 12 | 8 x 12 | 2 | 1 | 35 | 2.4 | |
| BSFS (B) 89T 38-852 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 2 | 1 | 35 | 3.4 | |
| BSFS (B) 102T 38-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 4.5 | |
|
|
BSFS (B) 89T 38-862 | 89 | 3 1/2 | 6 x 12 | 8 x 13 | 2 | 1 | 35 | 3.4 |
| BSFS (B) 102T 38-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 4.5 | |
|
|
BSFS (B) 76T 38-953 | 76 | 3 | 5 x 10 | 9x 10 | 3 | 0 | 35 | 2.4 |
| BSFS89 (b) t 38-963 | 89 | 3 1/2 | 6 x 12 | 9 x 12 | 3 | 0 | 35 | 3.4 | |
| BSFS102 (b) t 38-963 | 89 | 3 1/2 | 6 x 13 | 9 x 13 | 3 | 0 | 35 | 4.5 | |
|
|
BSDS (B) 70T 38-854 | 70 | 2 3/4 | 5 x 10 | 8 x 11 | 4 | 0 | 35 | 1.8 |
| BSDS (B) 76T 38-854 | 76 | 3 | 5 x 11 | 8 x 12 | 4 | 0 | 35 | 2.4 | |
| BSDS (B) 89T 38-854 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 4 | 0 | 35 | 3.4 | |
| BSDS (B) 102T 38-864 | 89 | 3 1/2 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 4.5 | |
Bity vŕtania T45
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
BSFS (B) 70T 45-842 | 70 | 2 3/4 | 4 x 11 | 8 x 11 | 2 | 1 | 35 | 1.9 |
| BSFS (B) 76T 45-852 | 76 | 3 | 5 x 11 | 8 x 13 | 2 | 1 | 35 | 2.5 | |
| BSFS (B) 76T 45-842 | 76 | 3 | 4 x 12 | 8 x 12 | 2 | 1 | 35 | 2.5 | |
| BSFS (B) 89T 45-852 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 2 | 1 | 35 | 3.6 | |
| BSFS (B) 102T 45-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 5.5 | |
|
|
BSFS (B) 89T 45-862 | 89 | 3 1/2 | 6 x 12 | 8 x 13 | 2 | 1 | 35 | 3.6 |
| BSFS (B) 102T 45-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 5.5 | |
| BSFS (B) 115T 45-872 | 115 | 4 1/2 | 7 x 13 | 8 x 14 | 2 | 1 | 35 | 6.5 | |
|
|
BSFS (B) 76T 45-953 | 76 | 3 | 5 x 10 | 9 x 10 | 3 | 0 | 35 | 2.5 |
| BSFS (B) 89T 45-963 | 89 | 3 1/2 | 6 x 12 | 9 x 12 | 3 | 0 | 35 | 3.6 | |
| BSFS (B) 102T 45-973 | 102 | 4 | 7 x 13 | 9 x 13 | 3 | 0 | 35 | 5.5 | |
| BSFS (B) 115T 45-973 | 115 | 4 1/2 | 7 x 14 | 9 x 14 | 3 | 0 | 35 | 6.5 | |
| BSFS (B) 127T 45-983 | 127 | 5 | 8 x 14 | 9 x 16 | 3 | 0 | 35 | 7.5 | |
|
|
BSDS (B) 76T 45-854 | 76 | 3 | 5 x 11 | 8 x 12 | 4 | 0 | 35 | 2.5 |
| BSDS (B) 89T 45-854 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 4 | 0 | 35 | 3.6 | |
| BSDS (B) 102T 45-864 | 89 | 3 1/2 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 5.5 | |
| BSDS (B) 115T 45-874 | 89 | 3 1/2 | 7 x 13 | 8 x 14 | 4 | 0 | 35 | 6.5 | |
| BSDS (B) 127T 45-874 | 89 | 3 1/2 | 7 x 14 | 8 x 16 | 4 | 0 | 35 | 7.3 | |
Tlačidlá karbidu T51
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
BSFS (B) 89T 51-852 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 2 | 1 | 35 | 3.7 |
| BSFS (B) 102T 51-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 5.8 | |
|
|
BSFS (B) 89T 51-862 | 89 | 3 1/2 | 6 x 12 | 8 x 13 | 2 | 1 | 35 | 3.7 |
| BSFS (B) 102T 51-862 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 5.8 | |
| BSFS (B) 115T 51-872 | 115 | 4 1/2 | 7 x 13 | 8 x 14 | 2 | 1 | 35 | 6.8 | |
| BSFS (B) 127T 51-882 | 127 | 5 | 8 x 14 | 8 x 16 | 2 | 1 | 35 | 8.9 | |
|
|
BSFS (B) 89T 51-963 | 89 | 3 1/2 | 6 x 12 | 9 x 12 | 3 | 0 | 35 | 3.7 |
| BSFS (B) 102T 51-973 | 102 | 4 | 7 x 13 | 9 x 13 | 3 | 0 | 35 | 5.8 | |
| BSFS (B) 115T 51-973 | 115 | 4 1/2 | 7 x 14 | 9 x 14 | 3 | 0 | 35 | 6.8 | |
| BSFS (B) 127T 51-983 | 127 | 5 | 8 x 14 | 9 x 16 | 3 | 0 | 35 | 8.9 | |
|
|
BSDS (B) 89T 51-854 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 4 | 0 | 35 | 3.6 |
| BSDS (B) 102T 51-864 | 89 | 3 1/2 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 5.5 | |
| BSDS (B) 115T 51-864 | 89 | 3 1/2 | 7 x 13 | 8 x 14 | 4 | 0 | 35 | 6.5 | |
| BSDS (B) 127T 51-864 | 89 | 3 1/2 | 7 x 14 | 8 x 16 | 4 | 0 | 35 | 7.3 | |
GT60 Bit Bit Bit Bit Bit
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
BSUS (B) 92GT 60-864 | 92 | 3 5/8 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 4.10 |
| BSUS (B) 6GT 60-864 | 96 | 3 3/4 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 4.30 | |
|
|
BSUS (B) 102GT 60-993 | 102 | 4 | 9 x 11 | 9 x 13 | 3 | 0 | 35 | 6.50 |
| BSUS (B) 115GT 60-910 | 115 | 4 1/2 | 10 x 12 | 9 x 14 | 3 | 0 | 35 | 7.50 | |
| BSUS (B) 127GT 60-910 | 127 | 5 | 10 x 13 | 9 x 16 | 3 | 0 | 35 | 10.50 | |
| BSUS (B) 140GT 60-910 | 140 | 5 1/2 | 10 x 14 | 9 x 16 | 3 | 0 | 35 | 13.90 | |
| BSUS (B) 152GT 60-912 | 152 | 6 | 12 x 14 | 9 x 16 | 3 | 0 | 35 | 17.30 | |
|
|
BSFS (B) 102GT 60-963 | 102 | 4 | 6 x 13 | 9 x 13 | 3 | 0 | 35 | 6.50 |
| BSFS (B) 115GT 60-973 | 115 | 4 1/2 | 7 x 14 | 9 x 14 | 3 | 0 | 35 | 7.50 | |
| BSFS (B) 127GT 60-983 | 127 | 5 | 8 x 14 | 9 x 16 | 3 | 0 | 35 | 10.50 | |
| BSFS (B) 140GT 60-108 | 140 | 5 1/2 | 8 x 14 | 10 x 16 | 3 | 0 | 35 | 13.90 | |
| BSFS (B) 152GT 60-10103 | 152 | 6 | 10 x 14 | 10 x 16 | 3 | 0 | 35 | 17.30 | |
Bit gombíka vŕtania lavičiek ST58
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
BSFS (b) 89. 58-852 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 2 | 1 | 35 | 3.9 |
| BSFS (b) 102. 58-852 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | 1 | 35 | 5.8 | |
|
|
BSFS (b) 89. 58-963 | 89 | 3 1/2 | 6 x 12 | 9 x 12 | 3 | / | 35 | 3.7 |
| BSFS (b) 102. 58-973 | 102 | 4 | 7 x 13 | 9 x 13 | 3 | / | 35 | 5.8 | |
| BSFS (B) 115st 58-973 | 115 | 4 1/2 | 7 x 14 | 9 x 14 | 3 | / | 35 | 6.8 | |
| BSFS (B) 127st 58-983 | 127 | 5 | 8 x 14 | 9 x 16 | 3 | / | 35 | 8.9 | |
|
|
BSDS (b) 89. 58-854 | 89 | 3 1/2 | 5 x 12 | 8 x 13 | 4 | 0 | 35 | 3.6 |
| BSDS (b) 102. 58-864 | 102 | 4 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 5.5 | |
| BSDS (B) 115st 58-864 | 115 | 4 1/2 | 7 x 13 | 8 x 14 | 4 | 0 | 35 | 6.5 | |
| BSDS (B) 127st 58-864 | 127 | 5 | 7 x 14 | 8 x 16 | 4 | 0 | 35 | 7.3 | |
Bit bit bit ST68
| Publica | Článok č. | Priemer | Tlačidlo | Splachovacia diera | Uhol (stupeň) | Váha (kg) | |||
| mm | palec | Predná strana | Prerušiť | Predná strana | Rozmer | ||||
|
|
BSFS (b) 102. 68-852 | 102 | 4 | 6 x 12 | 8 x 14 | 2 | / | 35 | 5.9 |
| BSFS (B) 115st 68-973 | 115 | 4 1/2 | 7 x 13 | 8 x 14 | 2 | / | 35 | 7.8 | |
| BSFS (B) 127st 68-983 | 127 | 5 | 7 x 14 | 8 x 16 | 2 | / | 35 | 10.2 | |
|
|
BSFS (b) 102. 68-973 | 102 | 4 | 7 x 13 | 9 x 13 | 3 | / | 35 | 5.9 |
| BSFS (B) 115st 68-973 | 115 | 4 1/2 | 7 x 14 | 9 x 14 | 3 | / | 35 | 7.8 | |
| BSFS (B) 127st 68-983 | 127 | 5 | 8 x 14 | 9 x 16 | 3 | / | 35 | 10.2 | |
|
|
BSDS (b) 102. 68-864 | 102 | 4 | 6 x 12 | 8 x 14 | 4 | 0 | 35 | 5.9 |
| BSDS (B) 115st 68-864 | 115 | 4 1/2 | 7 x 13 | 8 x 14 | 4 | 0 | 35 | 7.8 | |
| BSDS (B) 127st 68-864 | 127 | 5 | 7 x 14 | 8 x 16 | 4 | 0 | 35 | 10.2 | |
